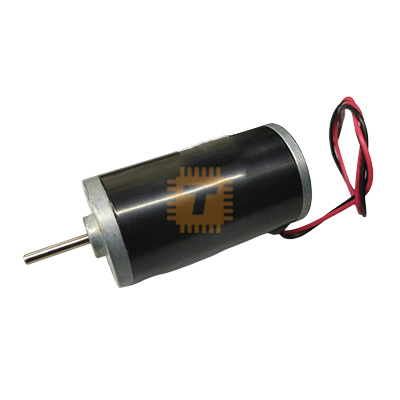

This high-power permanent magnet DC (PMDC) motor is engineered for high-speed, high-torque applications. Operating on a standard 12V DC rail, it spins up to a rapid 8000RPM (revolutions per minute) when unloaded. Unlike standard miniature hobby motors, this unit features thick internal copper windings, heavy-duty carbon brushes, and high-flux permanent magnets, making it a reliable choice for power tools, custom robotics, and small electric vehicles.

Specifications

• Motor Type: Brushed Permanent Magnet DC (PMDC)
• Operating Voltage: 12V DC (Safe operating range: 6V - 15V)
• No-Load Speed: Approx 8000RPM (at 12V)
• Rated Speed (Under Load): 6000RPM - 6800RPM
• No-Load Current: Approx 1.0A - 1.5A
• Stall Current (Peak draw): 15A - 30A+ (Depending on frame size, e.g., 550 or 775 armature)
• Rotation Direction: Bidirectional (Reversible by flipping power polarity)
• Shaft Configuration: Standard round or D-cut output shaft (typically 3.17mm or 5mm} diameter)
• Cooling Profile: Often features an integrated internal cooling fan blade

Core Features

• High-Velocity Output: Reaching 8000RPM makes this motor ideal for rotational tasks like cutting, drill chuck driving, and high-velocity belt systems.
• Linear Torque Delivery: Permanent magnet architecture provides a predictable, linear performance curve; as mechanical load increases, current draw scales up proportionally while speed drops predictably.
• Robust Carbon Brushes: Uses replaceable or heavy-duty internal carbon brushes rather than cheap copper leaf brushes, ensuring the motor can handle large current surges and extended runtimes.
• Reversible Rotation: Direction of rotation is easily controlled by swapping the positive (+) and negative (-) wires at the motor terminals.
• High Startup Torque: Delivers maximum torque instantly at 0RPM (stall), allowing it to start up quickly under heavy mechanical loads.

Common Applications

• DIY Power Tools: Driving mini table saws, bench drills, PCB routers, and custom rotary polishing tools.
• Combat Robotics & EV Sleds: Powering the drive wheels of medium-weight combat robots or custom electric skateboards/scooters.
• Automated Actuators: Operating heavy-duty linear slide stages and custom winches through a reduction gearbox.
• R/C Models: Upgrading large-scale remote-controlled boats, trucks, and starter boxes.

Usage & Safety Tips

• Account for Stall Current: When choosing a power supply or electronic speed controller (ESC), do not look only at the no-load current (1.5A). You must choose a power source (like a 12V Lead-Acid battery, high-discharge LiPo battery, or a 30A switching power supply) that can handle the motor's peak stall current. If your power supply is rated for only 2A or 5A, it will instantly shut down or burn out the moment the motor encounters mechanical resistance.
• Thermal Dissipation: High-power motors generate significant heat under continuous loads. Ensure the air ventilation holes on the front and back of the motor casing are not blocked by mounting brackets. If enclosed inside a tight chassis, add an external clip-on aluminum heatsink.
• Solder Joint Security: Because this motor vibrates at high speeds (8000RPM), ensure your power supply wires are soldered securely to the terminal tabs and insulated with heat-shrink tubing to prevent short-circuits.
• Flyback Diode Protection: If you are controlling this motor with a single MOSFET or microcontroller relay rather than a dedicated motor driver, place a high-current rectifier diode (e.g., 1N5408) in parallel with the motor terminals (pointing away from ground) to absorb dangerous inductive voltage spikes when the motor is turned off.
