3.5 inch 480x320 SPI TFT LCD Display Touch Screen Shield Module 3.3-5V for Arduino (MD0240) Products
| Name | 3.5 inch 480x320 SPI TFT LCD Display Touch Screen Shield Module 3.3-5V for Arduino |
| Code | MD0240 |
| Price | Rs.2,750.00 |
| In Stock | Yes |
| Package | MODULE |
Product Details

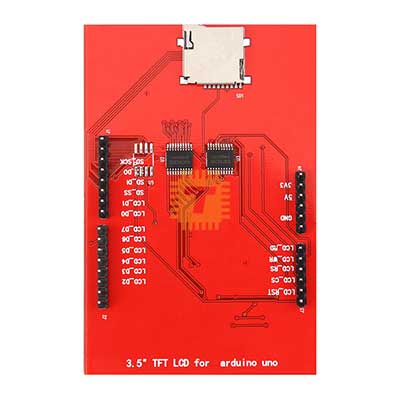

This 3.5-inch touch screen module features a high-resolution display of 480x320 pixels, providing a larger and sharper viewing area for detailed graphics and complex user interfaces. It is equipped with a sensitive resistive touch panel, allowing for precise user interaction.
Specifications
- Resolution: 480 x 320 Pixels
- Controller Options: Arduino Compatible (Such as ILI9341, ST7789, SPFD5408, etc.)
- Interface: SPI Serial
- Touch Screen Type: Resistive touch
- Operating Voltage: 3.3V / 5V
- External Storage: MicroSD (TF) card socket integrated on-board
<button></button> - Weight: Approximately 50g
- Logic Level Compatibility: 3.3V to 5V
Features
- High-Resolution Display: Offers 480x320 pixels for crisp text and detailed graphical rendering.
<button></button> - Sensitive Touch Panel: Provides a smooth and responsive interface for menu navigation and interactive controls.
- Integrated SD Socket: Simplifies projects that require loading bitmap images or logging large amounts of sensor data.
- Wide Compatibility: Onboard voltage regulation and level shifting ensure stable operation with both 3.3V and 5V systems.
- Common Applications:
- Advanced GUI dashboards for home automation
- Handheld diagnostic and measurement instruments
- Digital photo frames and image viewers
- Interactive control panels for industrial or DIY projects
NOTE: Even though the item name may contains a particular display driver IC, it could contain a different but compatible display driver IC. The firmware should first detect the controller IC and then initialise accordingly.
